Located in the industrial hub of GIDC Makarpura, Apollo Steel Industries specializes in the manufacturing of high-precision Refractory Anchors, Wedge Anchors, and Hex Bolts.
Beyond manufacturing, we serve as a comprehensive partner for your piping needs, stocking a vast inventory of Stainless Steel, Duplex, Inconel, and Monel Pipes, Valves, and Fittings. Whether you need custom fabrication or bulk supply, we deliver certified quality.

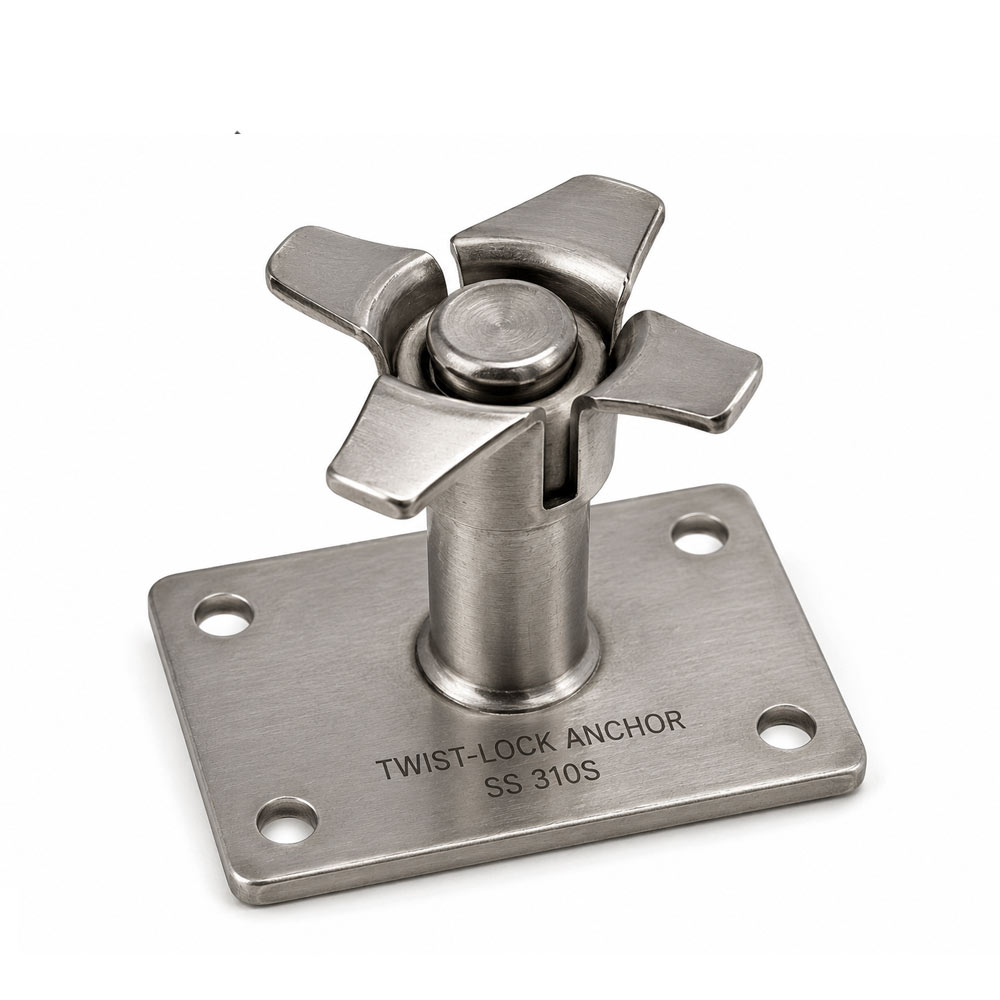

Apollo Steel Industries manufactures a complete range of refractory anchors — V-Anchors, Y-Anchors, S-Anchors, Twist-Lock Anchors, Spiral Anchors, Hex-Mesh Anchors and Bullhorn Anchors — in Stainless Steel SS 304, SS 309, SS 310 and Nickel-Chromium Alloys such as Inconel 601. We also supply Ceramic Anchors for extreme temperature and highly corrosive furnace atmospheres where metallic anchors are unsuitable. Every anchor is manufactured to the specified lining thickness, spacing and hot-face temperature with complete material traceability.

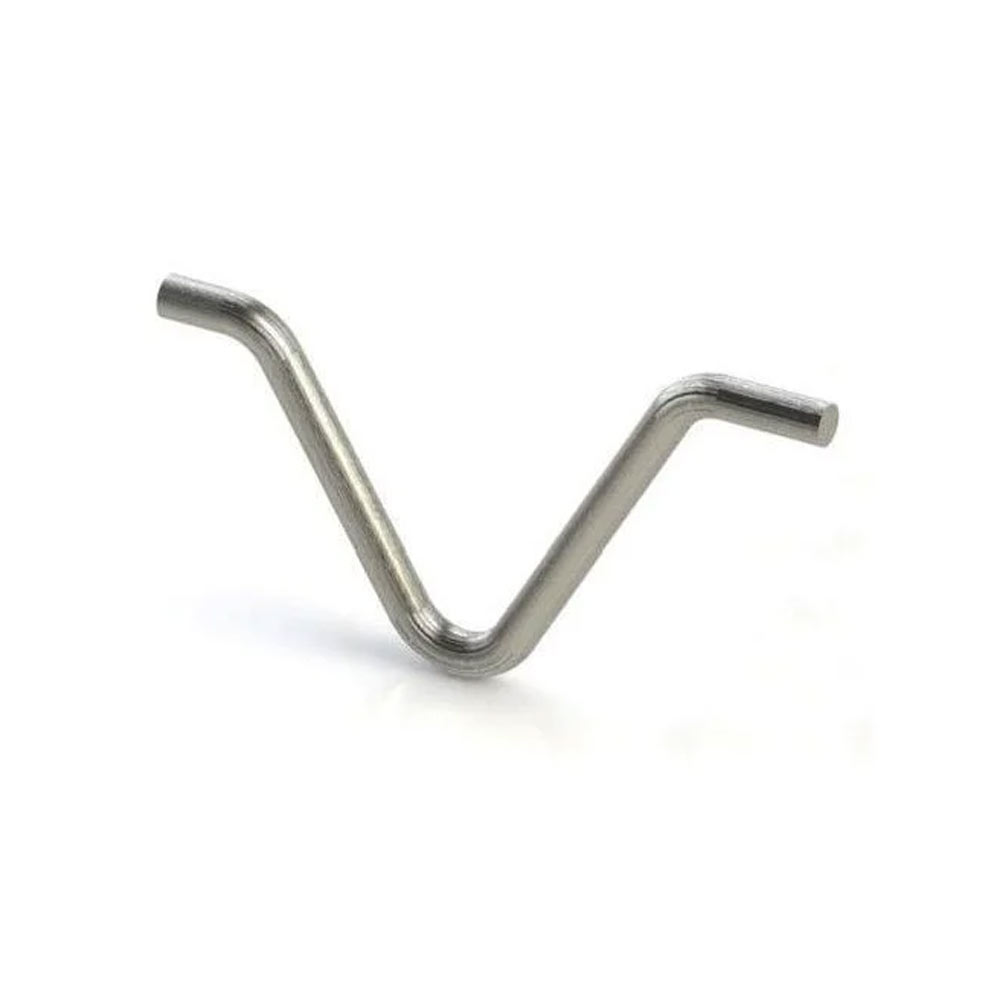

The most common refractory anchor type, known for superior holding power in castable and brick linings. Manufactured to penetrate 75–85% of lining thickness, V-Anchors are suited for furnace walls, roofs and ducting subject to high mechanical load.

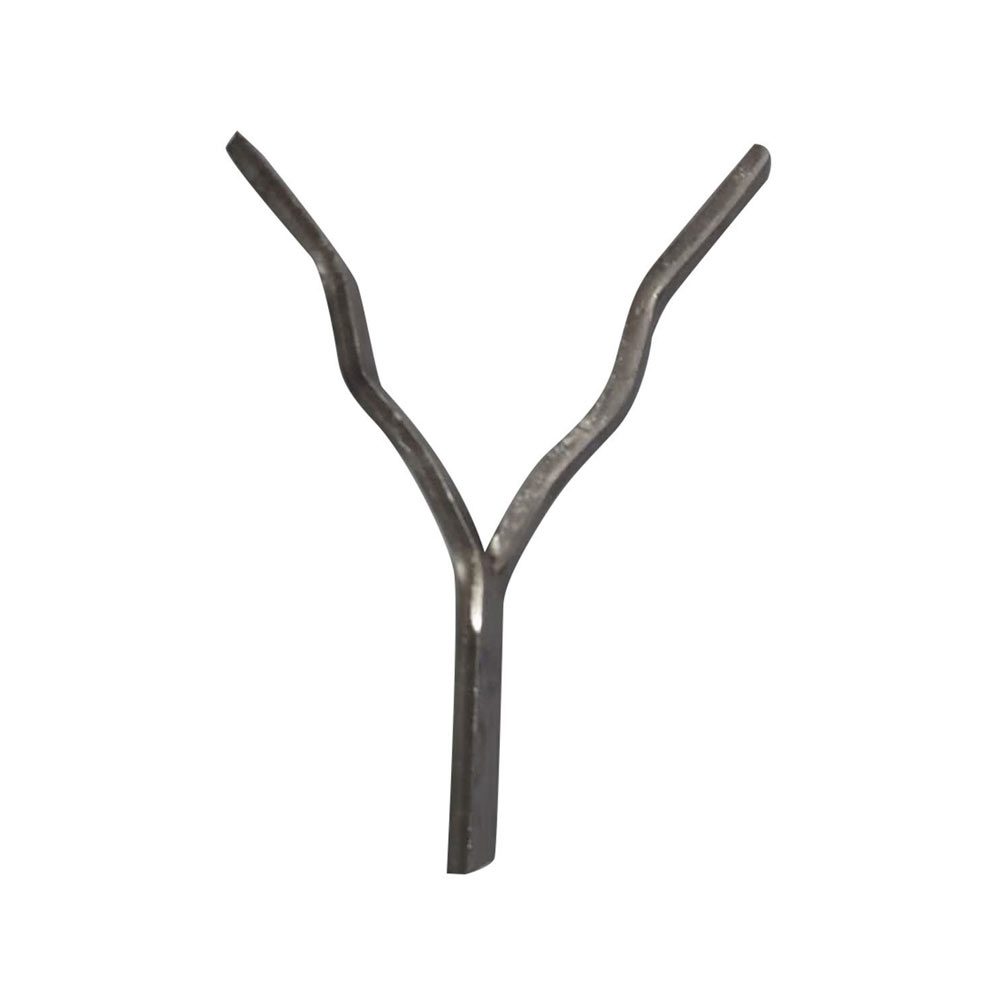

Three-pronged anchors that allow the refractory lining limited freedom to move, accommodating thermal expansion and contraction during heat-up and cooldown cycles without cracking the lining or overstressing the anchor.

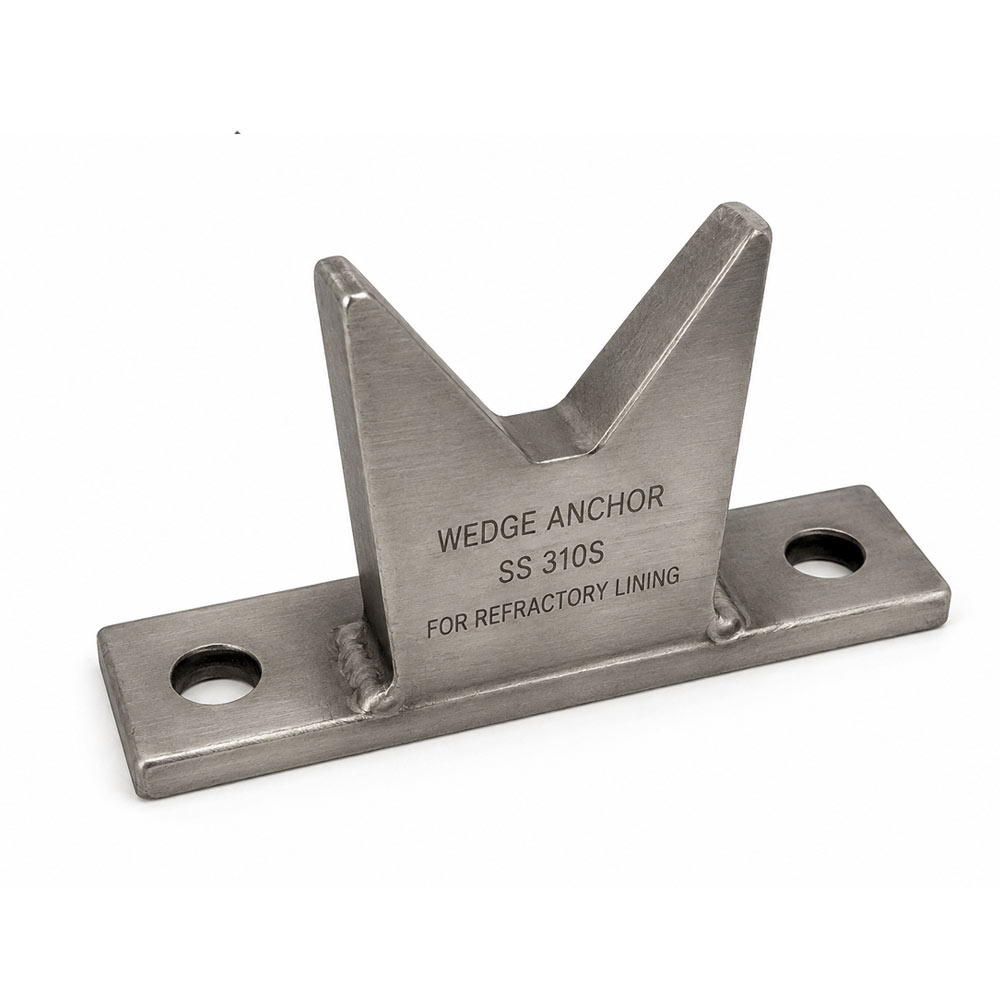

Wedge Anchors are specially designed to provide secure reinforcement for refractory castable linings in high-temperature industrial equipment. Their wedge-shaped design offers excellent holding strength, minimizes lining movement during thermal expansion, and enhances the durability of furnaces, kilns, boilers, reactors, and incinerators.
Cup-shaped metal disks mounted on a stud or threaded rod and capped with a ceramic fiber washer, purpose-built for securing ceramic fiber blanket and module linings under compression.

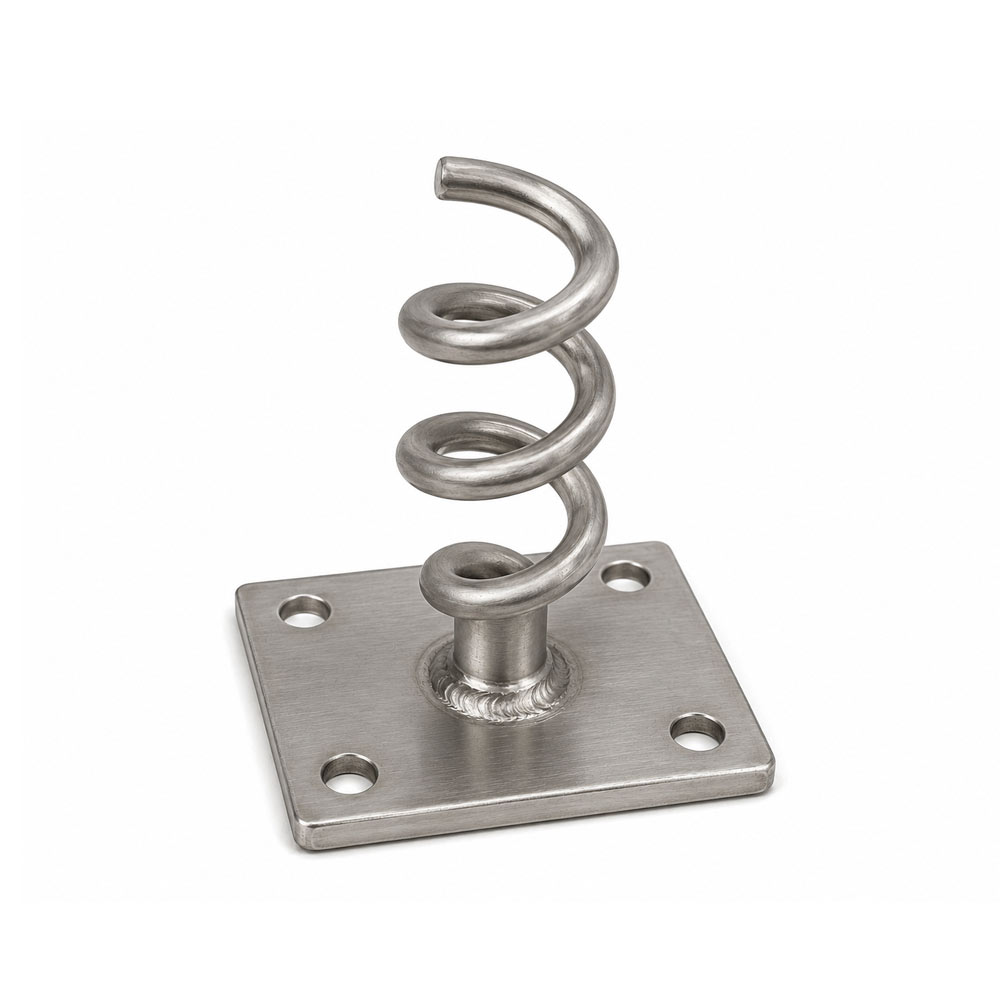

Coil-formed anchors offering a large surface area for gripping castable refractory, well suited to curved shells, transition ducts and cyclones where standard anchor geometry is difficult to weld.

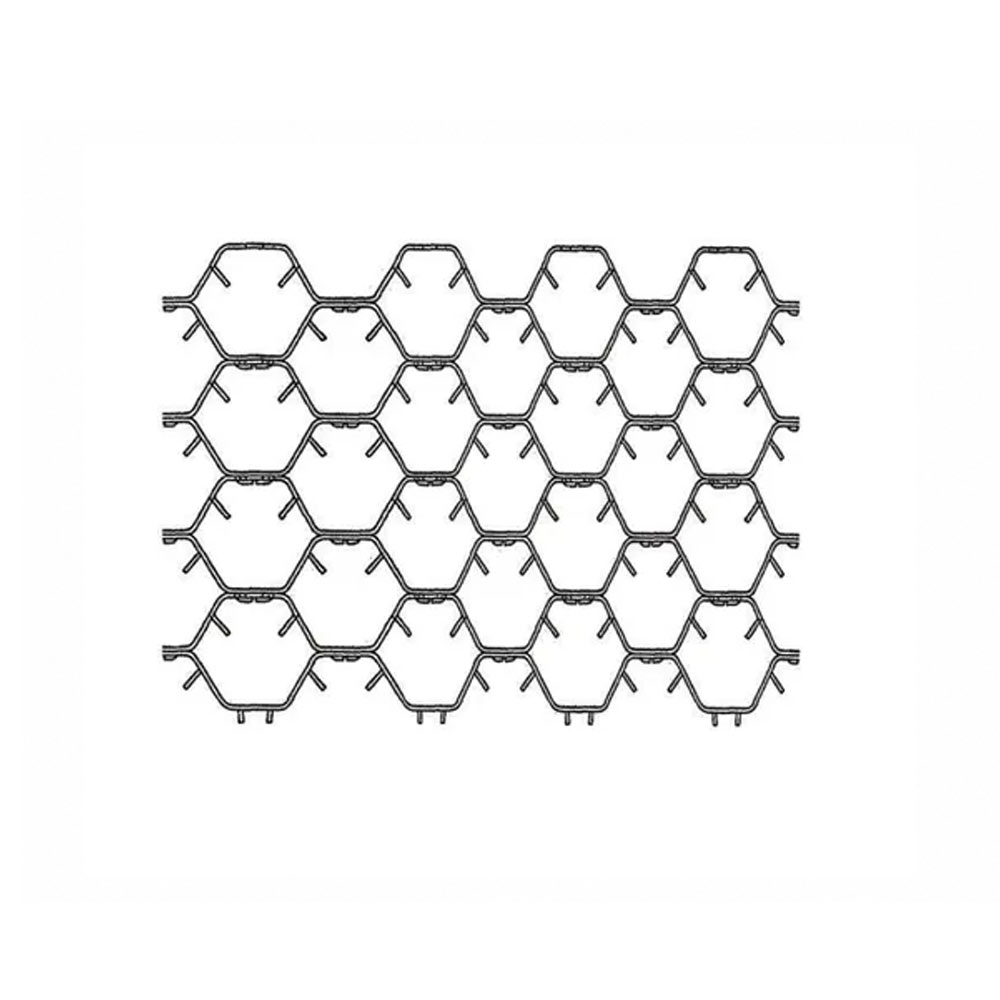

A continuous grid of hexagonal cells welded to the shell and filled with refractory, providing a complete anchoring system rather than individual anchors. Ideal for severe erosion conditions such as FCCU cyclones and transfer lines.
Common anchor grades matched to hot-face and furnace atmosphere operating conditions.
| Grade | Material | Max. Service Temp. | Typical Application |
|---|---|---|---|
| B7 | Chrome-Moly Alloy Steel | ASTM A193 Gr. B7 | High Temperature Bolting & Fasteners |
| B8 / B8M | Austenitic Stainless Steel Bolting | ASTM A193 Gr. B8 / B8M | Corrosion Resistant Bolting & Fasteners |
| Stainless Steel 304 | Austenitic Stainless Steel | ASTM A240 / A276 / A312 Gr. 304 | General Corrosion Resistant Service |
| Stainless Steel 316 | Austenitic Stainless Steel + Mo | ASTM A240 / A276 / A312 Gr. 316 | Chemical, Marine & Process Service |
| Duplex 2205 | Duplex Stainless Steel | UNS S31803 / S32205 | Offshore, Chloride & Chemical Process Service |
| Super Duplex 2507 | Super Duplex Stainless Steel | UNS S32750 / S32760 | High Chloride, Sour Service & Offshore Applications |
| Hastelloy | Nickel-Chromium-Molybdenum Alloy | ASTM B575 / B574 (C276 / C22) | Severe Corrosion & High Temperature Service |
| Monel | Nickel-Copper Alloy | ASTM B127 / B164 (Monel 400 / K500) | Sea Water & Hydrofluoric Acid Service |
| Inconel | Nickel-Chromium Alloy | ASTM B168 / B166 / B446 | High Temperature & Corrosive Service |
| Titanium | Commercially Pure / Alloyed Titanium | ASTM B265 / B348 (Grade 2 / 5) | Marine, Aerospace & Chemical Process Service |
| 904L | Super Austenitic Stainless Steel | UNS N08904 | Sulphuric Acid & High Corrosion Service |
| Alloy Steel | Chrome-Moly Alloy Steel | ASTM A182 / A335 / A387 | High Temperature & High Pressure Service |
Our refractory anchors are trusted to hold furnace, kiln and boiler linings in place across heavy engineering and critical process industries.
Every batch is supplied with complete material test certificates and dimensional traceability.
Specialized manufacturing in SS 309, SS 310, Incoloy 800 and Inconel 601 grades for extreme heat service.
Anchor length, spacing and type engineered to your lining thickness and hot-face temperature.
Large stock inventory ensures fast turnaround on bulk and repeat project orders.
